SAEAUT SNMP OPC Server Enhanced 3.02.0.0
SNMP network management integration with SCADA and HMI using OPC and Web Services, OPC DA 3.0, 2.05,1.0, OPC XML DA, OPC AE 1.1 and 1.0, SNMPv2c, SNMPv1, ICMP ping. Auto Discovery Networked Devices, MIB import on line, csv-files import.
Product Specifications
| User Rating: | item has less then 1 vote |
|
| FileCart Rating | Not yet Rated | |
| Submitted by: | saeautom | |
| License | Shareware | |
| Expires | Days | |
| Price | $1694 | |
| Downloads | 486 | |
| OS Support | Windows Install and Uninstall | |
| File Size | 23.30 MB ( 23,863 KB ) | |
| Published | Oct 09, 2012 (14 years ago) | |
| Updated | Dec 17, 2013 (12 years ago) | |
Latest Searches
ta 1425 test point 2 minutes ago
Why did the Chinese convert to Buddhism?highlight=0 3 minutes ago
trrtyh 5 minutes ago
download jurnal 2.Media Pembelajaran Educaplay 6 minutes ago
Natural for birdsLinen Shirt Maker Dress 6 minutes ago
rmx3910 lcd 7 minutes ago
Meant to be 11 minutes ago
display 12 minutes ago
download.yaml?highlight=0 12 minutes ago
Popular Searches
id cards 602 times
2025 461 times
2024 386 times
Softperfect 326 times
Database Workbench Pro 258 times
TeraByte Drive Image Backup and Restore 255 times
Elcomsoft Phone Breaker 251 times
2026 248 times
ia que faz video com imagem 18 245 times
Product Details
It has the following features:
- usable for managed and unmanaged devices
- implemented OPC specifications:OPC DA 3.0, 2.05,1.0, OPC XML DA, OPC Alarms and Events Version 1.1 and 1.0, OPC UA 1.1
- implemented protocols: SNMPv2c, SNMPv1
- using SNMP commands GET, SET and traps
- using ICMP ping to manage devices without running SNMP agent and displaying of round trip time as one OPC variable
- tags in address space of the OPC server are defined using MIB object identifier (Object ID), for example .1.3.6.1.4.1.2681.1.2.102; defined Object ID's can be validated by input in OPC configurator
- the possibility to manage unlimited number of devices with running SNMP agent
- pre-processing data using JScripts
- support of global JScript variables to enable for example implementation of historical data processing, filtration or other algorithms
- on line MIB Browser, which scans SNMP manageable devices for its SNMP variables that correspond to MIB objects
- import from csv-files
- IP Scanner, which is used for scanning computer network communities in defined IP area
- logging of SAEAUT SNMP OPC Server activities to log-files
- find functionality for easy finding of items in address space of the OPC server
Installation package contains:

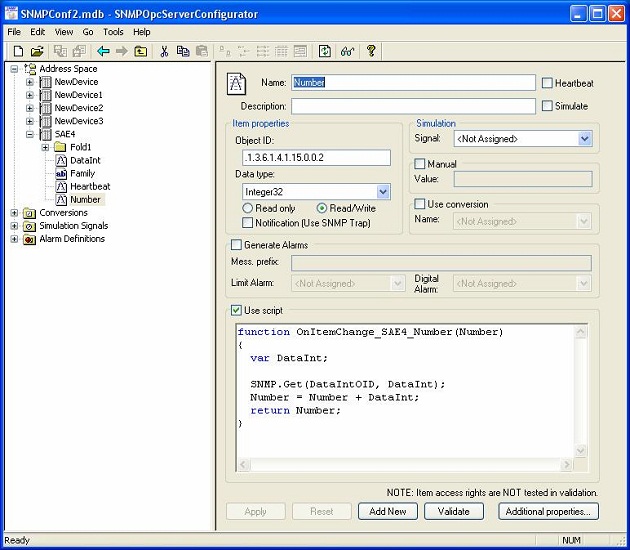

- SNMP OPC Server configurator with built in JScript editor
- runtime application (SNMP OPC Server process)
- OPC XML-DA wrapper
-OPC UA wraper
- source code examples for OPC test clients (written in VB6 and VB.NET) for the communication with SNMP OPC server, using OPC DA3 interface or Web Services
| Requirements: | Computer/Processor Pentium II compatible CPU,Memory: recommended 512 MB,installed SNMP service |
| Release Info: | Major Update on Mar 31, 2013 |
| Release Notes: | Common installation file for x86 an x64 OS platforms, improvements related to working with UAC, settings for SNMP service and start of the service is provided by installation. |
