Electrodoc Pro 2.0.3

Electrodoc Pro is a simple and powerful collection of electronics tools and references.
Electrodoc is the new app name of Electrodroid. Same app, with the same and even more features.

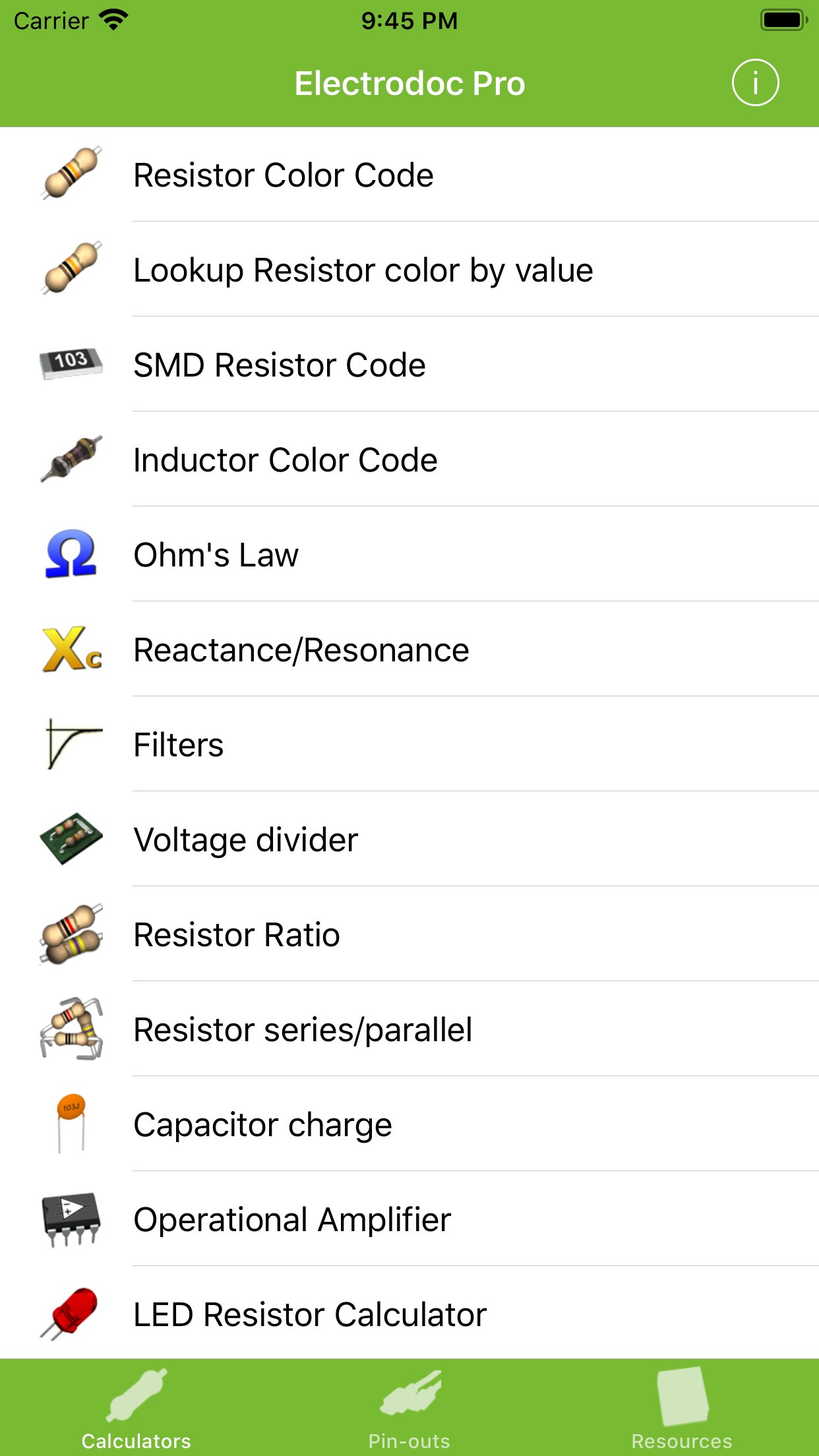

The app includes:

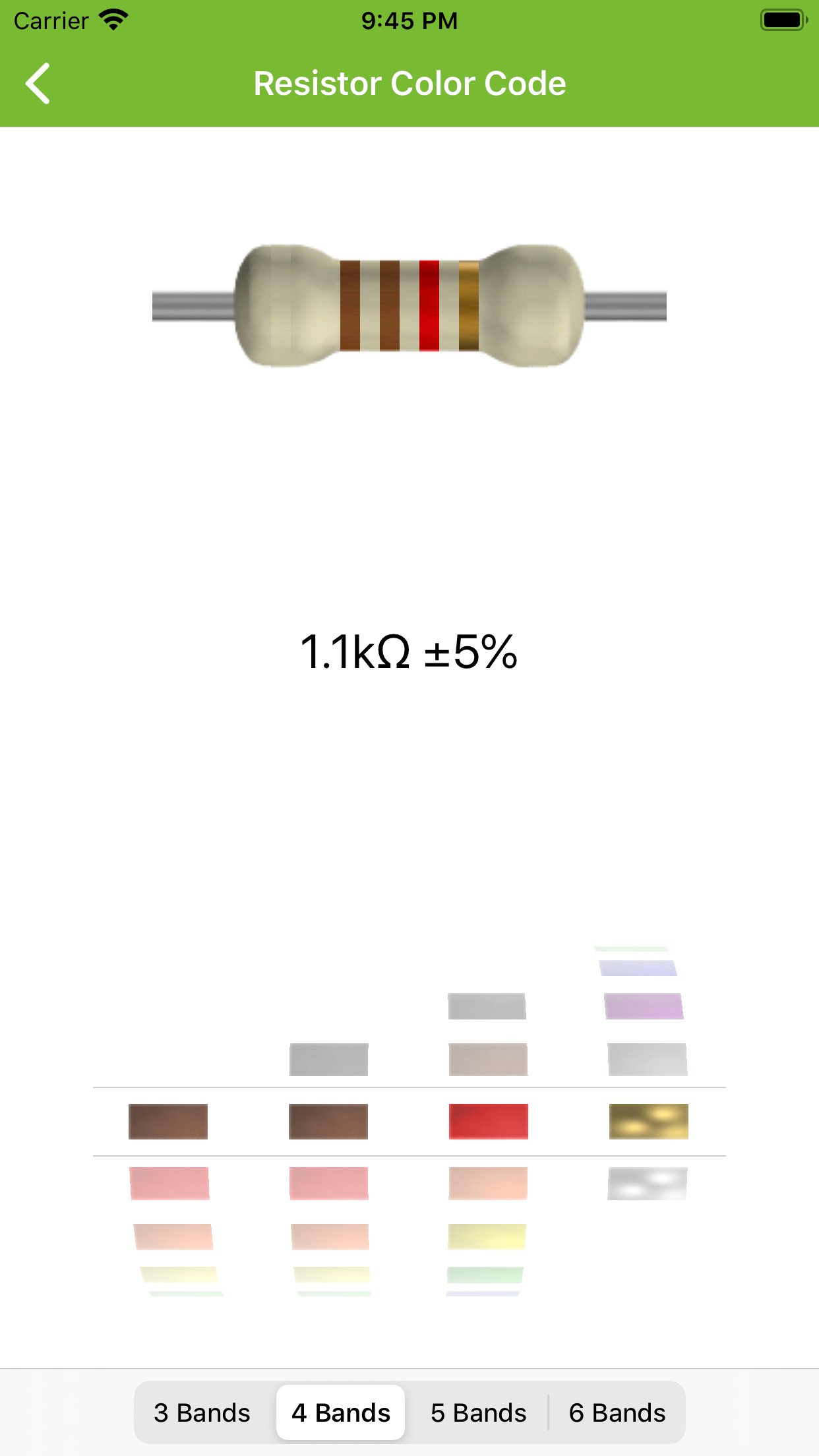

o Resistor Color Code;
o Lookup Resistor color by value;
o SMD Resistor Code;
o Inductor Color Code;

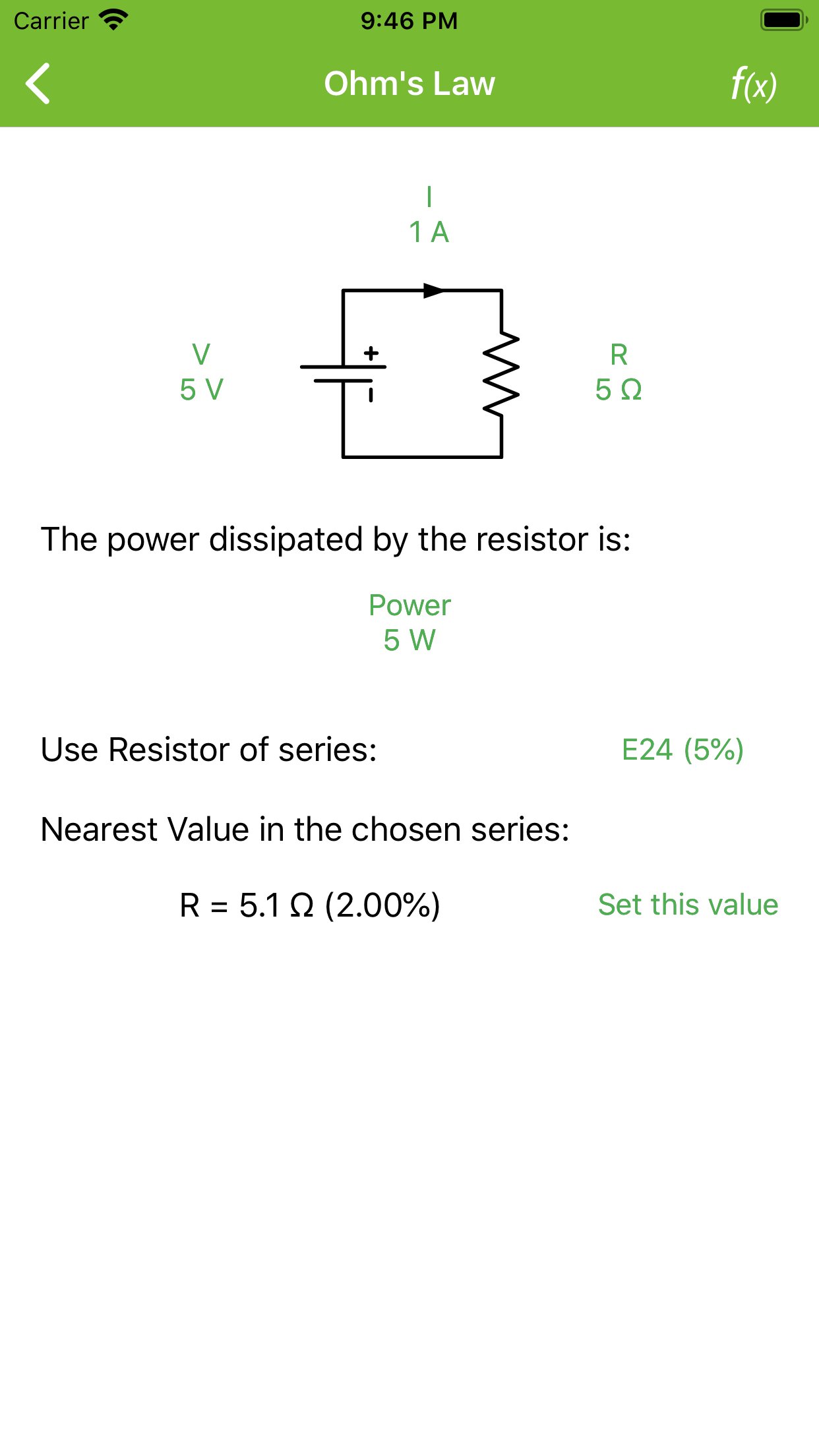

o Ohm's Law;
o Reactance/Resonance;
o Filters;
o Voltage divider;
o Resistor Ratio;
o Resistor series/parallel;
o Capacitor charge;
o Operational Amplifier;
o LED Resistor Calculator;
o Adjustable voltage regulator;
o NE555 Calculator;
o Power dissipation;
o Battery Life calculator;
o Inductor Design Tool;
o Voltage Drop Calculator;
o PCB Trace Width Calculator;
o Power Calculator;
o Y-? Transformation;
o Decibel Converter;
o Frequency Converter;
o Analog-Digital Converter;
o RMS Converter;
o Range Converter;

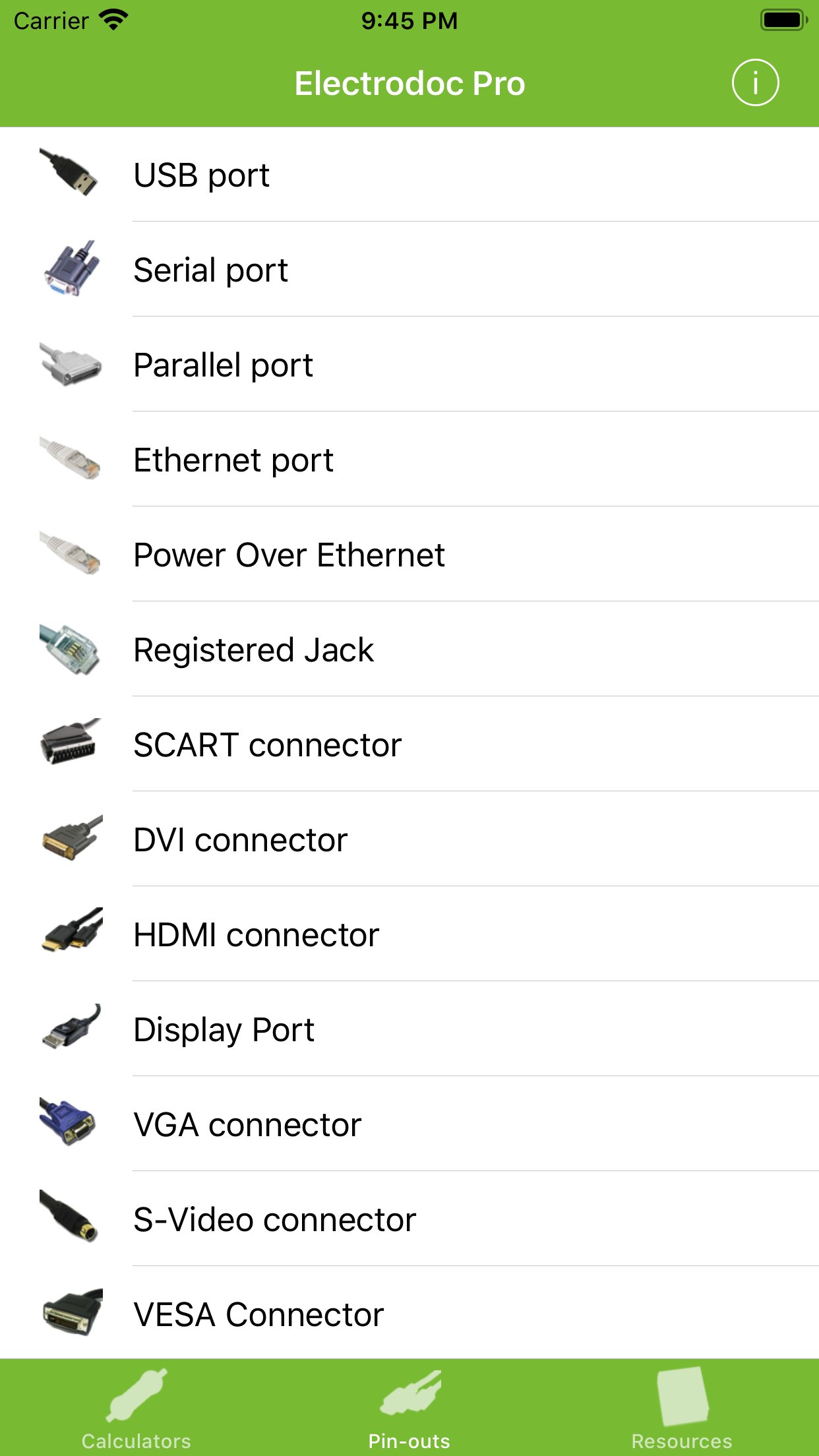

o Port pin-out (USB port, Serial port, Parallel port, Ethernet port, Power Over Ethernet, Registered Jack, SCART connector, DVI connector, HDMI connector, Display Port, VGA connector, S-Video connector, VESA Connector, Jack connector, FireWire connector, RCA connector, Audio DIN connector, XLR and DMX, ATX Power connectors, PC peripheral connectors, EIDE/ATA - SATA, PS/2-AT connectors, 25-pair cable color code, Fiber Optic cable color, MIDI connector, MIDI/Game port, Apple 30-pin connector, Apple Lightning connector, PDMI, OBD-II Car connector, Car audio ISO connector, Trailer connectors, SD card pin-out, SIM/Smart card, Raspberry Pi pin-out, LCD pin-out, GPIB/IEEE-488 pin-out, Thermocouples colors, Arduino boards, JTAG pinouts, BeagleBone boards);

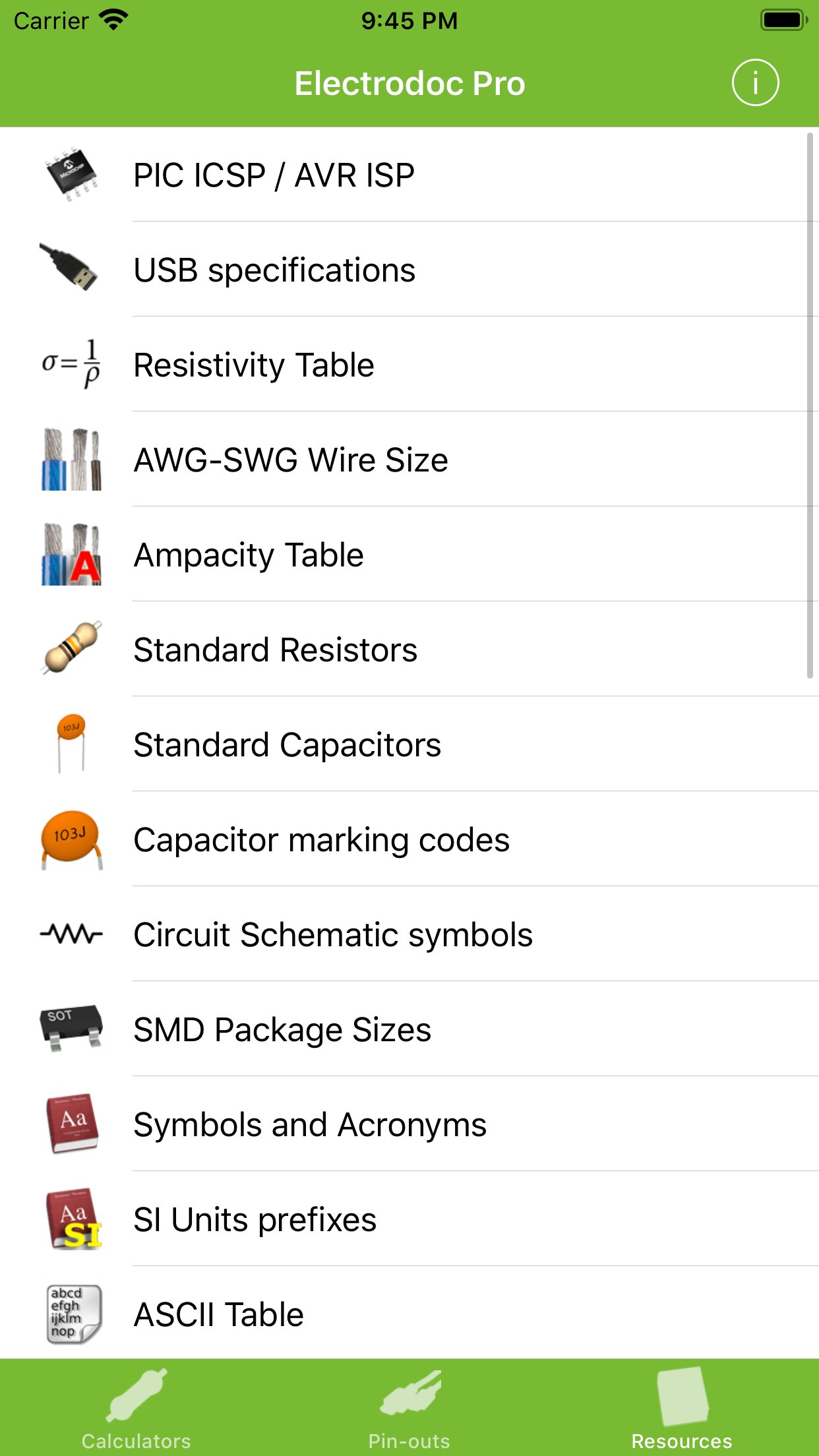

o Resources (PIC ICSP / AVR ISP, ChipDB (IC pinouts), USB specifications, Resistivity Table, AWG-SWG Wire Size, Ampacity Table, Standard Resistors, Standard Capacitors, Capacitor marking codes, Circuit Schematic symbols, SMD Package Sizes, Symbols and Acronyms, SI Units prefixes, ASCII Table, Boolean Logic gates, 7400 series IC, Switch Information, 78xx IC, Batteries, Coin Batteries, Decibel Table, Radio frequencies, PT100 Conversion Table, Fuses color code, Automotive Fuses colors, DIN 47100 color coding, IP marking, World Plugs & Sockets, IEC Connectors, NEMA connectors);
o Full support for EIA resistor series for all calculators;
...and more to come!

If you like the program, please rate it on the app store

For FAQ and full change-log, visit [link removed]

License: Commercial
